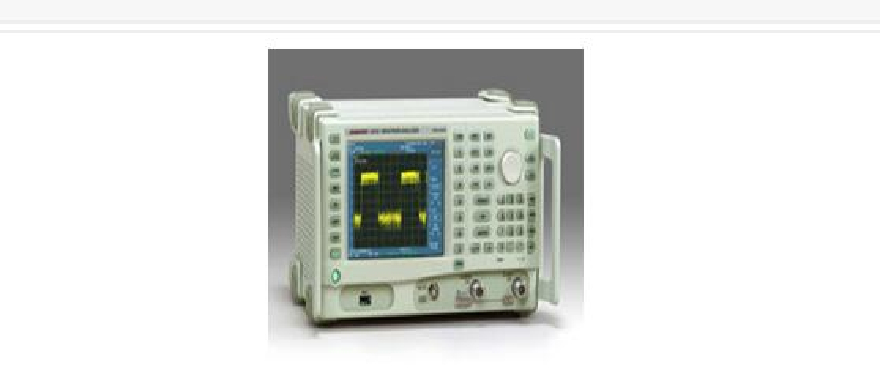

Product Name: spectrum analyzer U3751
Manufacturer: Advantest
Product model: U3751
Characteristic:
The frequency range: 9kHz ~ 8GHz
The maximum input level: 30dBm
The RBW:300Hz ~ 3MHz
It has the advantages of small size, light weight (5.6 kg), fast measurement
The outdoor measurement: W-CDMA, PHS, GSM, WLAN...
We provide a large number of standard test functions
The good price, an upgraded version of R3162
The standard interface: GPIB, USB (printing and storage), VGA, LAN
Function introduction:
frequency
Frequency range 9kHz ~ 8GHz
Band bandwidth
9kHz ~ 3.1GHz 0
3.0GHz ~ 8GHz 1
Preamplifier 10MHz ~ 8GHz
Frequency meter
Resolution 1Hz ~ 1kHz
(RBW<100kHz, input signal level >-50dBm, CW and signal single)
Frequency reference precision
Stability 2 * 10-6/ years
2.5 * 10-6 (0 degrees C to 50 C)
bandwidth
Range 10kHz ~ 8GHz, 0Hz (Ling Pinkuan)
Precision < 1%
Residual FM (Ling Pinkuan) <60Hzp-p/100ms (frequency reference internal)
The spectral purity of -85dBc/Hz (10kHz offset), bandwidth <200kHz
Resolution bandwidth
Range 300Hz ~ 3MHz (1-3 step)
RBW accuracy 12%
Video bandwidth 10Hz ~ 3MHz (1-3 step)
amplitude
Measurement range noise level to 30dBm
Maximum input level
(input attenuation over 10dB) preamplifier OFF: 30dBm
Preamplifier ON: 13dBm
15VDCmax
Input attenuation range of 0 to 50dB (10dB step)
Display gear 100, 50, 20, 10, 5dB, Linear
DBm, dBmV, dB V, dB Vemf, dBpW, W, V
Reference level range -140 ~ 40dBm
Detector Normal, Posi-peak, Nega-peak, Sample, RMS
Calibration signal
Frequency 20MHz
Level -20dBm
Precision 0.3dB
Scale display accuracy
Logarithm 0.5 /10dB dB
0.5 /80dB dB
0.2 /1dB dB
Level measurement accuracy correction, pre amplifier OFF
Temperature range: 20 to 30
Input attenuation: REF:0dBm; 10dB
Input signal level: -10dBm ~ -50dBm
1.5 dB (9kHz ~ 10MHz)
0.8 dB (10MHz ~ 3.1GHz)
1 dB (3.1GHz ~ 8GHz)
scanning
Scanning time of 20ms ~ 1000s (spectrum mode), 50 s ~ 1000s (Ling Pinkuan)
Scanning precision < 2% (Ling Pinkuan)
Trigger mode FREE, VIDEO, EXT, IF
Scan mode single, repeated
dynamic range
Average noise level frequency: 8GHz ~ REF, 10MHz level: <-45dBm, RBW:300Hz
Pre amplifier OFF bandwidth 0:-118dBm 2f (GHz) dB
Bandwidth 1:-117dBm 1f (GHz) dB
Pre amplifier ON bandwidth 0:-133dBm 3f (GHz) dB
Bandwidth 1:-134dBm 1.3f (GHz) dB
1dB gain compression frequency: 10MHz ~ 8GHz
Pre amplifier >-8dBm OFF
Pre amplifier >-25dBm ON
2 harmonic pre amplifier OFF frequency range mixing input
F>200MHz -40dBm <-70dBc
Typ f>300MHz -30dBm <-75dBc
2 signal 3 order -50dBc (frequency: 10MHz ~ 8GHz, pre amplifier OFF, mixer input -20dBm,
Out of tune: 200kHz)
Image / multiplex / out of band response <-60dBc (image suppression ON)
Residual response <-80dBm (10MHz ~ 8GHz, preamplifier OFF)
Input / output
RF input
Conversion head female type N
Impedance 50 (nominal)
<1.7:1 VSWR (<3.0GHz), input attenuation: >10dB
<2.0:1 (>3.0GHz), input attenuation: >10dB)
Corrected output signal BNC, 50 (nominal)
20MHz, -20dBm
Reference input BNC, 50 (nominal)
Input frequency (MHz) 1, 1.544, 2.048, 5, 10,, 13.824, 14.4, 15.36, 15.4, 16.8, 19.2, 19.44, 19.68, 19.8, 20,, 26,,,,,, 13,,,,,,,,,,, 19.6608, 12.8
Input level 0dBm ~ 16dBm
External trigger input 10K, BNC (nominal), DC coupling, trigger level: 0 ~ 5V
IF 21.4MHz output 50K, BNC (nominal), mixed input level of about: 10dB (20MHz)
Battery cell
Interface QR mount Antonbauer
External DC input
Interface XLR-4
Voltage range 11V ~ 17V
IEEE-488 BUS style GPIB conversion
USB1.1 USB
Video output D-sub15 pin female
LAN interface type 10/100, base-T RJ45
General standard
Ambient conditions 0 degrees C ~ 50 C, humidity below 85% (no frost time)
Storage temperature -20 C ~ 60
AC power input 200V, AC100V automatic conversion
100VAC ~ 100V, 50Hz/60Hz, 120V
200VAC ~ 200V, 50Hz/60Hz, 240V
DC power input 11V ~ 17V
Power consumption 100VA the following (AC), 70W (DC)
Dimensions 308mm (W) * 175mm (H) * 209mm (D) (feet, fittings, etc.)
337mm (W) * 190mm (H) * 307mm (D) (including feet, joints, etc.)
