- Size: 15*25*40
- Place of Origin: USA
- Brand Name: chulhi
- Model Number: E3631A
- Weight: 3.000 kg
Key Features & Specifications
Output Ratings
Output 1: 0 to 6 V, 0 to 5 A
Output 2: 0 to 25 V, 0 to 1 A
Output 3: 0 to -25 V, 0 to 1 A
Programming Accuracy at 25°C ±5°C
Voltage: 0.05% 20 mV, 0.05% 20 mV, 0.1% 5 mV
Current: 0.15% 4 mA, 0.15% 4 mA, 0.2% 10 mA
Ripple & Noise (20 Hz to 20 MHz)
Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
Normal-mode current: <500 µA rms, <500 µA rms, <2 mA rms
Common-mode current: <1.5 µA rms, <1.5 µA rms, <1.5 µA rms
Readback Accuracy at 25°C ±5°C
Voltage: 0.05% 10 mV, 0.05% 10 mV, 0.1% 5 mV
Current: 0.15% 4 mA, 0.15% 4 mA, 0.2% 10 mA
- Size: 15*25*40
- Place of Origin: USA
- Brand Name: chulhi
- Model Number: E3631A
- Weight: 3.000 kg

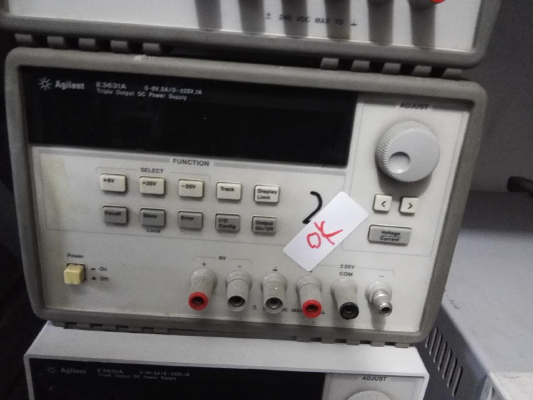

Keysight basic DC power supplies offer essential features for a tight budget. The triple output, 80 W, GPIB, E3631A provides small, compact size for bench use; low output ripple and noise; built-in measurements and basic programmable features with GPIB and RS232 interface. This clean and reliable supply is designed for general purpose applications; and combines convenient benchtop capabilities with flexible system features in a compact, multi-output package.
