- Place of Origin: SHANGHAI
- Brand Name: chulhi
- Model Number: UTE2102C
Type: electronic measurement

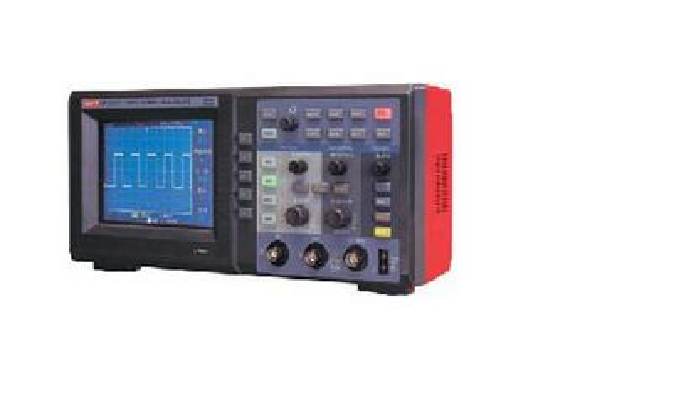

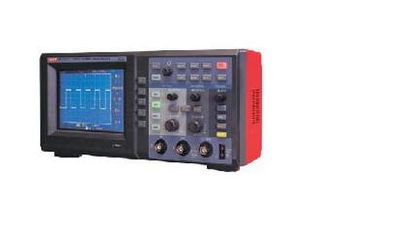

Name: digital oscilloscope
Manufacturer: youlide
Model: UTE2102C
Uni-t digital oscilloscope technology index:
basic function
Technical index
passageway
Two
bandwidth
100MHz
Sampling method
Real time sampling
500MS/s
Equivalent sampling
25GS/s
average value
2 N times, 2~256 times optional.
input
Input coupling
DC, AC, grounding (DC, AC, GND)
Input impedance
1 2% and 24 Mu Omega, 3pF parallel
Probe attenuation coefficient setting
1X, 10X, 100X, 1000X
Maximum input voltage
400V (DC AC peak, 1 m input impedance (10:1) probe attenuation)
Isolation between channels
Better than 40:1
Time delay between channels (typical)
150ps
level
Waveform interpolation
Sin (x) /x
Recording and storage
Storage depth: 1M sampling point
Scanning range (S/div)
5ns/div ~ 50s/div, 1-2-5 band (60MHz\80MHz\100MHz)
Sampling rate and delay time precision
100ppm (any more than 1ms time interval)
The time interval (T)
Measurement accuracy (full bandwidth)
Single time: (1 sampling interval time 100ppm * 0.6ns) > 16 average values: (1 sampling interval 100ppm x 0.4ns)
vertical
Analog to digital converter (A/D)
8 bit resolution, two channel simultaneous sampling
Deflection coefficient
2mV/div ~ 5V/div (at the input BNC)
Displacement range
10div
Analog bandwidth
100MHz
Selectable analog bandwidth limits, typical
20MHz
Low frequency response (AC coupling, -3dB)
10Hz (BNC)
Rise time (typical on BNC)
< 3.5ns
DC gain precision
2mv/div, 5mv/div 4% (sampling or average sampling method);
10mv/div ~ 5v/div: 3% (sampling or average sampling method)
DC measurement accuracy (mean value sampling method)
The vertical displacement is zero, and N = 16 (4% * 0.1div 1mV: Readings); vertical deflection coefficient = 5mV/div; N = 16 [3% *: (reading vertical displacement readings) (1% x] 0.2div) vertical displacement readings) vertical deflection coefficient from 2mV/div to 200mV/div and 2mV; vertical deflection coefficient 500mV/div to 5V/div plus 50mV.
The voltage difference (V) measurement accuracy (average sampling method)
In the same setting and environmental conditions, to capture more than 16 waveform average waveform voltage difference between the two office (V): (3% x 0.05div readings)
trigger
Trigger sensitivity
0.5div 10MHz~ DC~10MHz upper limit bandwidth 1div
Trigger level range
inside
Distance from the screen center 10div
EXT
1.6V
EXT/5
8V
Trigger level accuracy (typical) accuracy for signal in the rise and fall time was 20ns
inside
(V/div * 0.3div) (distance from the center of the screen within the range of 4div)
EXT
(6% set value 40mV)
EXT/5
(6% set value 200mV)
Pre triggering ability
Normal mode / scan mode, pre trigger / delay trigger, pre trigger depth adjustable
Suppression range
100ns-1.5s
Set level to 50% (typical)
The input signal frequency is greater than or equal to 50Hz under the condition of operation
Edge triggered
Edge type
Rise and fall
Pulse width trigger
Trigger mode
(greater than, less than, equal to) the positive pulse width, (greater than, less than, equal to) the negative pulse width
Pulse width range
20ns-10s
Video trigger
Trigger sensitivity
(video trigger, typical)
inside
2DIV peak value
EXT
400mV
EXT/5
2V
Signal mode and line / field
Frequency (video trigger type)
Support the standard NTSC and PAL standard, the number of lines is 1-525 (NTSC) and 1-625 (PAL)
Alternate trigger
CH1 trigger
Edge, pulse width, video, alternating
CH2 trigger
Edge, pulse width, video, alternating
measure
cursor
Manual mode
The voltage difference between the cursor (V), the time difference between the cursor (T), T (Hz) from Delta (1/ T)
Tracking mode
Voltage value and time value of waveform point
automatic measurement
The peak to peak value, amplitude, maximum value, minimum value, top value, end value, average value, RMS, overshoot, undershoot, frequency, cycle, rise time, fall time, pulse width, pulse width, positive negative positive negative duty ratio, duty ratio, delay 1- > 2 (up) delay, 1- > 2 (down) measurement
Mathematical operation
Add, subtract, multiply, divide, FFT
Storage waveform
10 sets of waveforms, 10 settings
FFT
Window
Hanning, Hamming, Blackman, Rectangular
Sampling point
1024 points
lissajous figures
phase difference
3 degrees
display
Display type
Diagonal for 145 mm (5.7 inch) LCD display
Display resolution (display)
320 horizontal * RGB * 240 vertical pixels (color)
Display color
colour
Display contrast
Adjustable
Backlight intensity (typical)
300nit
Display language category
Simplified Chinese, traditional Chinese, English
Probe compensator output
Output voltage (typical)
About 3V, the peak to peak load is greater than or equal to 1M
Frequency (typical)
1kHz
Interface function
Standard configuration
1 USB (D); 1 USB (H); 1 RS-232C
Optional accessories
GPIB and LAN
Power Supply
supply voltage
45Hz 100-240VACRMS to CAT, II 440Hz
consume power
Less than 30VA
Fuse
2A, T level, 250V
Environmental Science
temperature
Operation: 0 to 40
Non operation: -20 to 60
Cooling method
convection
humidity
10 ~ 30 DEG C: = 95% 5%RH,
30 ~ 40 DEG C: = 75% 5%RH
height
Operate 3000 meters
Non operating 15000 meters
Mechanical specifications
size
320mm (W) * 150mm (high) * 130mm (deep) (body size)
445 * 410 * 270 mm (2 standard packing size)
Weight (net weight)
Fuselage
2.5kg (excluding packaging), 4 kg (including packaging)
2 sets of packaging
9.2 kg (standard package gross)
IP protection
IP2X
